…… hieronder staan alle ZETTLER print en faston relais gesorteerd op typeaanduiding
	AZ8 printrelais max 6 amp / 250 vac 21,6×16,5×15 mm spoel 5 – 48 vdc 1 × maak of wissel contact 2000 vrms spoel-contact UL / SEV / VDE standaard
	AZ8P printrelais max 7/10 amp / 250 vac 21,2×16,2×14,7 mm spoel 3 – 60 vdc / bistabiel 1 spoel 1 × maak of wissel contact 4000 vrms spoel-contact / >3,5 mm UL / CUR op bestelling
	AZ576 printrelais max 20 amp / 277 vac 29,3×12,7×15,3 mm spoel 3 – 110 vdc 1 × maak of wissel contact 5000 vrms spoel-contact UL / CUR / TUV standaard
	AZ576P (bistabiel) printrelais max 20 amp / 480 vac 29,3×12,7×15,3 mm spoel 5 – 48 vdc / bistabiel 1 of 2 spoelen) 1 × maak, verbreek of wissel contact 5000 vrms spoel-contact UL op bestelling
	AZ696 printrelais max 10 amp / 440 vac 30(28)×10×16,2 mm spoel 5 – 48 vdc 1 × maak of verbreek of wissel contact 4000 vrms spoel-contact / >8 mm UL / CUR / VDE standaard
	AZ697 printrelais max 10 amp / 380 vac TV-5 29×13×25,9 mm spoel 3 – 110 vdc 1 × maak of wissel contact 5000 vrms spoel-contact / >6/8 mm UL / CUR / TUV op bestelling
	AZ725 printrelais max 20/120 amp / 400 vac 29,5×13,1×25,6 mm spoel 5 – 110 vdc 1 × maak of verbreek of wissel contact 5000 vrms spoel-contact / >8 mm UL / CUR op bestelling
	AZ733 printrelais max 2×12 amp / 400 vac 29×13×25,9 mm spoel 3 – 110 vdc 2 × maak of wissel contact 5000 vrms spoel-contact / >8 mm UL / CUR / TUV op bestelling
	AZ733W printrelais max 2×12 amp / 400 vac 29×13×25,9 mm spoel 3 – 110 vdc 2 × maak contact / contactafstand 1,5 mm 5000 vrms spoel-contact / >8 mm UL / CUR / TUV standaard
	AZ742 printrelais max 2×10 amp / 400 vac 29×12,7×15,7 mm spoel 3 – 110 vdc / 12 – 240 vac 2 × maak of wissel contact 5000 vrms spoel-contact / >10 mm UL / CUR / VDE standaard
	AZ743 printrelais max 2×10 amp / 440 vac 29,3×13×16 mm spoel 5 – 110 vdc / 24 – 230 vac 2 × maak of wissel contact 5000 vrms spoel-contact / >10 mm UL / CUR / VDE standaard
	AZ755 printrelais max 20 amp / 3800 vac 29×13×25,9 mm spoel 5 – 110 vdc 1 × maak of verbreek of wissel contact 5000 vrms spoel-contact UL / CUR / TUV op bestelling
	AZ761 printrelais max 12 amp / 440 vac 29,3×13×16 mm spoel 5 – 110 vdc / 24 – 230 vac 1 × maak of verbreek of wissel contact 5000 vrms spoel-contact / >10 mm UL/ CUR / VDE standaard
	AZ762 printrelais max 16 amp / 440 vac 29×12,7×15,7mm spoel 5 – 110 vdc / 24 – 230 vac 1 × maak of wissel contact 5000 vrms spoel-contact / >10 mm UL / CUR / VDE standaard
	AZ762H printrelais max 16 amp / 440 vac 29×12,7×15,7 mm spoel 5 – 60 vdc temp tot 105º Celsius 1 × maak of wissel contact 5000 vrms spoel-contact / >10 mm UL / CUR / VDE op bestelling
	AZ762P bistabiel printrelais max 20 amp / 350 vac 29,4×12,7×15,7 mm spoel 3 – 24 vdc / bistabiel 1 of 2 spoelen 1 × maak of wissel contact 4000 vrms spoel-contact optie: inrush 800A-200 µs / 200A-2ms / 165A-20 ms UL / CUR op bestelling
	AZ762T 800A printrelais max 16 amp / 440 vac 29×12,7×15,7 mm spoel 5 – 110 vdc 1 × maak contact met wolfraam voorloop contact 5000 vrms spoel-contact / >10 mm optie: inrush 800A-200 µs / 200A-2ms / 165A-20 ms UL / CUR / VDE op bestelling
	AZ763 printrelais max 12 amp / 400 vac 29×12,7×15,7 mm spoel 3 – 110 vdc / 12 – 240 vac 1 × maak of wissel contact 5000 vrms spoel-contact / >10 mm UL / CUR / VDE standaard
	AZ764 printrelais max 16 amp / 400 vac 29×12,7×15,7 mm spoel 3 – 110 vdc / 12 – 240 vac 1 × maak of wissel contact 5000 vrms spoel-contact / >10 mm UL / CUR / VDE standaard
	AZ764F printrelais max 20 amp / 400 vac 29×12,7×15,7 mm spoel 5 – 24 vdc 1 × maak contact met faston horizontaal of verticaal 5000 vrms spoel-contact / >10 mm temp tot 105º Celsius UL / CUR / VDE op bestelling
	AZ764H printrelais max 16 amp / 400 vac 29×12,7×15,7 mm spoel 5 – 48 vdc 1 × maak contact temp tot 105º Celsius 5000 vrms spoel-contact / >10 mm UL / CUR / VDE op bestelling
	AZ769 printrelais max 25 amp / 400 vac 30,5×16×23,5 mm spoel 5 – 24 vdc 1 × maak contact (faston) 4500 vrms spoel-contact UL / CUR op bestelling
	AZ770 printrelais max 10 amp / 250 vac 17,8×10,3×12,95 mm spoel 3 – 48 vdc 1 × maak of wissel contact 5000 vrms spoel-contact / 8 mm UL / CUR / VDE standaard
	AZ770H printrelais max 5 amp / 250 vac 17,8×10,3×12,95 mm spoel 3 – 24 vdc 1 × maak contact temp tot 105º Celsius 5000 vrms spoel-contact / 8 mm UL / CUR / VDE op bestelling
	AZ822 printrelais dil max 2 amp / 250 vac minimum switching load 10 mv, 10 μa 20×9,8×12 mm spoel 3 – 48 vdc 2 × wissel contact 1000 vrms spoel-contact UL / CUR standaard
	AZ832 printrelais dil max 3 amp / 250 vac minimum switching load 10 mv, 10 μa 20,2×10×10,7 mm spoel 3 – 48 vdc 2 × wissel contact 1500 vrms spoel-contact UL / CUR standaard
	AZ832P bistabiel printrelais dil max 3 amp / 250 vac minimum switching load 10 mv, 10 μa 20,2×10×10,7 mm spoel 3 – 24 vdc / bistabiel 1 of 2 spoelen 2 × wissel contact 1500/1200 vrms spoel-contact UL / CUR standaard
	AZ850 [bistabiel] printrelais dil max 1 amp / 250 vac minimum switching load 10 mv, 10 μa 14×9×5 mm spoel 3 – 48 vdc / mono- of bistabiel 1 of 2 spoelen 2 × wissel contact 1000 vrms spoel-contact UL / CUR standaard
	AZ851 smd smd printrelais dil max 1 amp / 250 vac minimum switching load 10 mv, 10 μa 14,2×9,3×6,2 mm spoel 3 – 48 vdc 2 × wissel contact 1000 vrms spoel-contact UL / CUR standaard
	AZ888 [bistabiel] printrelais max 5/8 amp / 380 vac 20,2×11,3×10,5 mm spoel 3 – 24 vdc / mono of bistabiel 1 of 2 spoelen diverse contact samenstellingen mogelijk UL Class F insulation (155°C) standard 3000 vrms spoel-contact UL / CUR op bestelling
	AZ921 printrelais max 5 amp / 250 vac 20,3×5,3×12,8 mm spoel 5 – 24 vdc 1 × maak contact (2 versies) 3000 vrms spoel-contact UL / CUR standaard
	AZ940 printrelais max 10 amp / 400 vac 20,5×10,2×15,7 mm spoel 3 – 24 vdc 1 × maak of wissel contact 4000 vrms spoel-contact UL / CUR / VDE op bestelling
	AZ942H printrelais max 16 amp / 300 vac 22×16,3×16,5 mm spoel 3 – 48 vdc 1 × maak of wissel contact 3000 vrms spoel-contact / >2,5 mm UL / CUR / VDE op bestelling
	AZ943 printrelais max 15 amp / 300 vac 19×15,3×15,7 mm spoel 5 – 48 vdc 1 × maak of wissel contact 1500 vrms spoel-contact UL / CUR / TUV standaard
	AZ943S smd printrelais max 15 amp / 300 vac 19,3×15,8×15,3 mm spoel 5 – 48 vdc 1 × wissel contact 1500 vrms spoel-contact UL / CUR / TUV op bestelling
	AZ943W printrelais max 10 amp / 277 vac 19,0×15,3×16,0 mm spoel 6 – 24 vdc 1 × maak of wissel contact contact gap >= 0,8 mm 1500 vrms spoel-contact UL / CUR op bestelling
	AZ946 printrelais max 2 × 1/5 amp / 300 vac 21,7×16×16,5 mm spoel 3 – 24 vdc 2 × maak of wissel contact 1000 vrms spoel-contact UL / CUR op bestelling
	AZ947 printrelais max 20 amp / 50 vdc / 125 vac 15,7×12,3×14mm spoel 6 – 24 vdc 1 × maak of wissel contact 500 vac vrms spoel-contact geschikt tot 85º celcius op bestelling
	AZ951-952 printrelais max 1-5 amp / 220 vac 15,8×10,8×11,8 mm spoel 3 – 24 vdc 1 × wissel contact UL / CUR standaard
	AZ956 [smd] printrelais max 1 amp / 125 vac 13,8×7,6×6,9 mm spoel 1,5 – 24 vdc 1 × wissel contact 1500 vrms spoel-contact UL / CUR standaard
	AZ956P [smd] bistabiel printrelais max 1 amp / 125 vac 13×7,6×6,9 mm spoel 5 – 24 vdc / bistabiel 1 of 2 spoelen 1 × wissel contact 1500 vrms spoel-contact UL / CUR op bestelling
	AZ957 printrelais max 1 amp / 125 vac 12,8×7,8×10,3 mm spoel 1,5 – 24 vdc 1 × wissel contact 1250 vrms spoel-contact UL / CUR standaard
	AZ963 printrelais max 6/10 amp / 380 vac 20,3×10,2×10,7 mm spoel 3 – 48 vdc 1 × maak of verbreek of wissel contact 4000 vrms spoel-contact UL / CUR / VDE op bestelling
	AZ970[E] printrelais max 40 amp / 150 vdc 23×18,8×18 mm spoel 6 – 24 vdc 1 × maak of verbreek of wissel contact 500 vdc vrms spoel-contact geschikt voor hoge inschakelstromen op bestelling
	AZ971[E] printrelais max 40 amp / 150 vdc 26,2×21,1×21,1 mm spoel 6 – 24 vdc 1 × maak of verbreek of wissel contact 500 vdc vrms spoel-contact geschikt voor hoge inschakelstromen op bestelling
	AZ977 relais met faston max 20 amp / 30/150 vdc 23×15,5×26 mm spoel 6 – 24 vdc 1 × maak of wissel contact 1000 vrms spoel-contact geschikt voor hoge inschakelstromen op bestelling
	AZ979 relais met faston max 80 amp / 30 vdc 22×33,4×41 mm spoel 6 – 24 vdc 1 × maak of verbreek of wissel contact 500 vrms spoel-contact geschikt voor hoge piekstromen op bestelling
	AZ980 relais met faston max 80 amp / 28 vdc 29×29×26,5 mm spoel 6 – 24 vdc 1 × maak of verbreek of wissel contact 500 vrms spoel-contact geschikt voor hoge piekstromen op bestelling
	AZ983 printrelais max 80 amp / 30 vdc 29×29×26,5 mm spoel 6 – 24 vdc 1 × maak of verbreek of wissel contact 500 vrms spoel-contact geschikt voor hoge piekstromen op bestelling
	AZ987 printrelais max 30 amp / 16 vdc 12,3×13,2×10,2 mm // 24×13,2×10,2 mm spoel 6 – 12 vdc 1 of 2 × maak of wissel contact 500 vrms spoel-contact in enkel en dubbel contact uitvoering op bestelling
	AZ2150 printrelais max 40 amp / 300 vac 31,8×26,9×19,1 mm spoel 5 – 110 vdc 1 × maak of verbreek of wissel contact 2500 vrms spoel-contact UL / CUR standaard
	AZ2150W printrelais max 30 amp / 440 vac 31,8×26,9×19,1 mm spoel 5 – 48 vdc 1 × maak contact / contact afstand 1,75 mm 4000 vrms spoel-contact UL / CUR / VDE (9, 12 en 24 vdc) op bestelling
	AZ2250 printrelais max 40 amp / 277 vac 32,2×27×20,1 mm spoel 5 – 110 vdc / 12 – 277 vac 1 × maak of verbreek of wissel contact 2500 / 4000 vrms spoel-contact UL / CUR / VDE op bestelling
	AZ2280 relais met faston max 30 amp / 277 vac 50,2×27,5×27,8 mm spoel 5 – 48 vdc / 12 – 277 vac 1 × maak of verbreek of wissel contact 2500 vrms spoel-contact UL / CUR / VDE op bestelling
	AZ2501 P1/P2 printrelais max 50 amp / 440 vac 39,3×15,3×30,5mm spoel 6 – 48 vdc / bistabiel 1 of 2 spoelen 1 × maak of wissel contact 4000 vrms spoel-contact / 8 mm UL / CUR op bestelling
	AZ2704 printrelais max 30 amp / 400 vac 50,5×33,5×36 mm spoel 3 – 200 vdc / 6 – 240 vac 1 of 2 × maak contact / contactafstand 2,4 of 3 mm 4000 vrms spoel-contact UL / CUR / TUV op bestelling
	AZ2800 relais met faston max 40 amp / 600 vac 68,4×33,5×26,4 mm spoel 6 – 110 vdc / 12 – 277 vac 2 × maak of wissel contact 4000 vrms spoel-contact / 8 mm UL / CUR / VDE op bestelling
	AZ2850 printrelais max 40 amp / 600 vac 52,6×34,8×26,4 mm spoel 6 – 110 vdc / 12 – 277 vac 2 × maak of wissel contact 4000 vrms spoel-contact / 8 mm UL / CUR / VDE op bestelling
	AZ6951 printrelais max 5 amp / 250 vac 18,5×6,5×12,4 mm spoel 5 – 24 vdc 1 × maak contact 3000 vrms spoel-contact UL / CUR / TUV op bestelling
	AZ6960 printrelais max 8 amp / 400 vac 28,5×10,1×12,5 mm spoel 5 – 60 vdc 1 × maak of verbreek of wissel contact 5000 vrms spoel-contact / >8 mm UL / VDE op bestelling
	AZ6962 printrelais max 10 amp / 440 vac 28,5×10,1×12,5 mm spoel 5 – 60 vdc 1 × maak of verbreek of wissel contact 5000 vrms spoel-contact / >10 mm UL / CUR / VDE standaard
	AZ6991 printrelais max 8 amp / 400 vac 28×5×15 mm spoel 5 – 60 vdc 1 × maak of wissel contact horizontale en verticale versie 4000 vrms spoel-contact / >8 mm UL / CUR / VDE standaard
	AZ7621P bistabiel printrelais max 16 amp / 440 vac 29,0×12,7×15,7 mm spoel 3 – 24 vdc of vac / bistabiel 1 of 2 spoelen 1 × maak of wissel contact 5000 vrms spoel-contact UL / CUR op bestelling
	AZ7709 printrelais max 5/10 amp / 250 vac 10,2×18,1×15,2 mm spoel 3 – 48 vdc 1 × maak contact 4000 vrms spoel-contact UL / CUR / TUV op bestelling
	AZ8462 [smd] [bistabiel] (smd) printrelais max 2 amp / 250 vac 15,2×7,7×9,2 mm spoel 1,5 – 24 vdc / mono- of bistabiel 1 of 2 spoelen 2 × wissel contact 2000 vrms spoel-contact UL / CUR standaard
	AZ8521 [bistabiel] [smd] smd / tht [bistabiel] printrelais max 0,5 amp / 125 vac of 2 amp / 30 vdc minimum switching load 10 mv, 10 μa 10×6,5×5,4 mm spoel 1,5 – 24 vdc / mono- of bistabiel 1 spoel 2 × wissel contact 1600 vrms spoel-contact UL / CUR op bestelling
	AZ9371 printrelais max 5/10 amp / 277 vac 20,5×7,2×15,3 mm spoel 3 – 24 vdc 1 × maak contact 4000 vrms spoel-contact UL / CUR / VDE standaard
	AZ9405 printrelais max 10 amp / 277 vac 20,3×10,3×15,5 mm spoel 3 – 48 vdc 1 × maak of wissel contact 4000 vrms spoel-contact UL, CUR file E44211 TUV op bestelling
	AZ9481 printrelais max 16 amp / 250 vac 22,5×16,5×11,4 mm spoel 5 – 48 vdc 1 × maak of wissel contact 2500 vrms spoel-contact UL / CUR / TUV op bestelling
	AZ9571 printrelais max 1 amp / 125 vac 12,5×7,5×10,0 mm spoel 3 – 24 vdc 1 × wissel contact 1000 vrms spoel-contact UL / CUR standaard
	AZ9731 relais met faston max 40 amp / 28 vdc 26,5×26,5×24,5 mm spoel 6 – 24 vdc 1 × maak of wissel contact of 1 x U 750 vrms spoel-contact weerstand of diode parallel aan spoel mogelijk op bestelling
	AZ21501 printrelais max 50 amp / 300 vac 32,5×27,6×20,5 mm spoel 3 – 110 vdc 1 × maak of verbreek of wissel contact 4000 vrms spoel-contact UL / CUR standaard
	AZ21501P bistabiel printrelais max 50 amp / 277 vac 32,5×27,6×20,5 mm spoel 5 – 48 vdc / bistabiel 1 spoel 1 × maak, verbreek of wissel contact 2500 vrms spoel-contact UL / CUR op bestelling

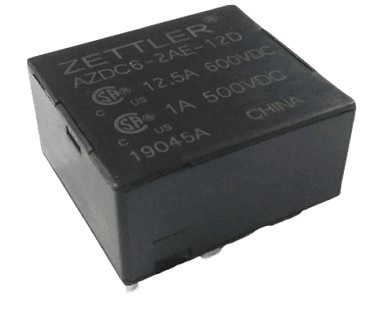

	AZDC6 printrelais max 13 amp / 600 vdc 32,9×29,6×16,0 mm spoel 12 vdc 1 of 2 × maak contact 5000 vrms spoel-contact class F (155 C) CSA in aanvraag nieuw begin 2019
	AZDC105 printrelais max 150 amp / 60 vdc 47,6×40,0×45,1 mm spoel 12 – 48 vdc 1 × maak contact 4000 vrms spoel-contact class F (155 C) UL / CUR / TUV op bestelling
	AZDC110 printrelais max 16 amp / 180 vdc 29,3×12,7×19,0 mm spoel 5 – 24 vdc 1 × maak contact 5000 vrms spoel-contact UL / CUR / TUV op bestelling
	AZEV116 printrelais max 16 amp / 400 vac 35,0×16,0×27,9 mm spoel 12 vdc 1 × maak + 1 x signaal contact contactafstand ≥ 2,25 mm 4000 vrms spoel-contact class F (155 C) op bestelling
	AZEV132 printrelais max 32 amp / 400 vdc 35,0×16,0×27,9 mm spoel 12 vdc 1 × maak + 1 x signaal contact contactafstand ≥ 2,25 mm 4000 vrms spoel-contact class F (155 C) op bestelling
	AZSR126 printrelais max 26 amp / 277 vac 30,4×15,9×23,3 mm spoel 9 – 24 vdc 1 × maak contact / contactafstand >1,8 mm 4500 vrms spoel-contact UL / CUR op bestelling
	AZSR131 printrelais max 35 amp / 277 vac 30,4×15,9×25,2 mm spoel 5 – 48 vdc 1 × maak contact / contactafstand max 2,3 mm 4500 vrms spoel-contact UL / CUR / TUV / EN 60335-1 (GWT) op bestelling
	AZSR143 printrelais max 50 amp / 277 vac 30,4×15,9×25,2 mm spoel 5 – 48 vdc 1 × maak contact / contactafstand max 1,8 mm 4500 vrms spoel-contact UL / TUV / CQC op bestelling
	AZSR165 printrelais max 80 amp / 690 vac 38×33×41,5 mm spoel 6 – 24 vdc 1 × maak contact / contactafstand >3 mm 4000 vrms spoel-contact / >10 mm UL / CUR / TUV op bestelling
	AZSR180 printrelais max 80 amp / 440 vac 40×25×49,2 mm spoel 12 – 24 vdc 1 × maak contact / contactafstand >2,05 mm 5000 vrms spoel-contact / >10 mm UL / CUR / VDE op bestelling
	AZSR190 printrelais max 90/100 amp / 800 vac 38×33×43 mm spoel 6 – 24 vdc 1 × maak contact / contactafstand >3,6 mm 5000 vrms spoel-contact / >10 mm UL / CUR / TUV op bestelling
	AZSR235/250 printrelais max 1/2×35/50 amp / 440 vac 40×25×49,2 mm spoel 5 – 24 vdc 1 of 2 × maak contact / contactafstand >1,85 / >2,05 mm 5000 vrms spoel-contact / >10 mm UL / CUR / VDE op bestelling
	AZSR1160 printrelais max 160 amp / 690 vac 62,0×63,3×41,7 mm 1 × maak contact contactafstand >3,6 mm 4000 vrms spoel-contact / >10 mm / 10 kV UL / CUR / TUV op bestelling
	AZSR1180 printrelais max 180 amp / 690 vac 62,0×63,3×41,7 mm 1 × maak contact contactafstand >3,6 mm 4000 vrms spoel-contact / >10 mm / 10kV UL / CUR / TUV op bestelling
	AZSR1200 printrelais max 200 amp / 800 vac 62,0×63,3×41,7 mm 1 × maak contact contactafstand >3,6 mm 4000 vrms spoel-contact / >10 mm / 10kV UL / CUR / TUV op bestelling
